The SMS0868 liquid crystal display module is a liquid crystal display module that can display 8 digits and 24 segments, a wide voltage working range, low power consumption, and is connected to MCU microcontrollers via three-wire serial ports.
The SMS0868 is a numeric LCD display module that can show 8 digits, 24 indicator symbols and 4 decimal points. It operates over a wide voltage range, has low power consumption and connects to an MCU via a three‑wire serial interface.

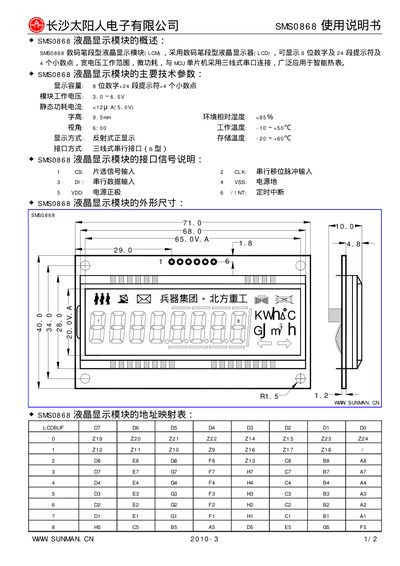

The manual lists the main technical parameters, pin functions, physical dimensions and a mapping table for the LCD driver pins, giving developers the information needed to integrate the module into smart meter or other instrumentation projects. This manual is written in Chinese.
| Display capacity | 8 digits, 24 symbols, 4 decimal points |
|---|---|
| Operating voltage | s.0~6.sy |
| Power consumption | <1zh A (5.0W) |
| Character height | 9.5 mm |
| Operating temperature | -1o~-+so*C |
| Storage temperature | -2o-+eoC |
| Interface type | Three‑wire serial interface (CB type) |
| Pin functions | CS, CLK, PL, VSS, VPP, /INT |
It can display 8 digits, 24 indicator symbols and 4 decimal points.
The module operates from approximately s.0 to 6.sy volts.
The character height is 9.5 mm.
