SMS1612F LCD display module is a low-power yellow-green LED bottom backlight digital pen-segment LCD display module, which can display 3 rows of numbers (6+6+4) for a total of 16 digits and 13 decimal points, and is widely used in gas stations and other occasions.
The SMS1612F is a 16‑digit liquid crystal display (LCD) module with LED backlight, capable of showing 13 decimal points. It operates with a three‑wire bus interface and is suitable for devices such as humidifiers.

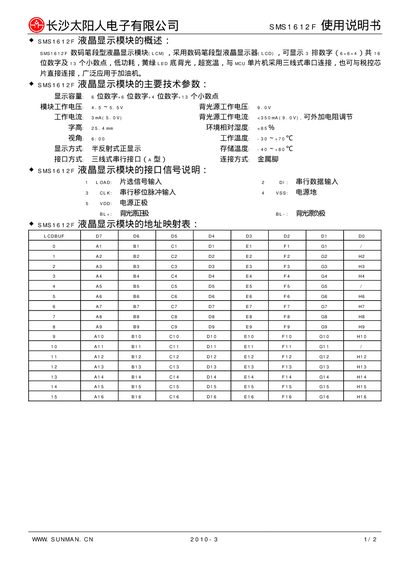

The manual details the module's electrical characteristics, pin assignments, and connection methods, including power supply requirements, current consumption, temperature ranges, and display formatting. This manual is written in Chinese.
| Operating current (5.0 V) | 3 mA |
|---|---|
| Backlight current (9.0 V) | <350 mA |
It draws about 3 mA at 5 V.
It can be stored from –30 °C to +70 °C and operated from –40 °C to +80 °C.
