SMS1208E lcd display module, adopts digital pen segment type liquid crystal display, can display 12 digits and 7 segments of prompts and 12 decimal points, low power consumption, with MCU single chip microcomputer using three-wire serial port connection, widely used in telephone meter, intelligent display meter.
The SMS1208E is a 12‑digit numeric LCD module with 7‑segment characters and 12 decimal points. It operates on a low‑power three‑wire serial interface and is used in applications such as telephone billing meters and intelligent displays.

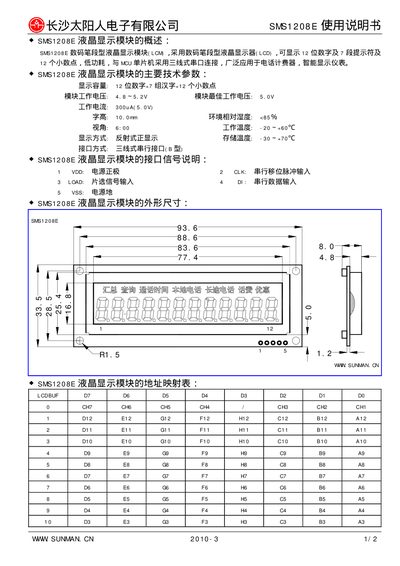

The manual lists the module's technical parameters, pin functions, physical dimensions, and address mapping table, and includes a reference to the product webpage for further information. This manual is written in Chinese.
| Display capacity | 12 digits, 7 segment characters, 12 decimal points |
|---|---|
| Operating temperature range | -20 °C to +60 °C |
| Storage temperature range | -30 °C to +70 °C |
| Interface type | Three‑wire serial interface |
| Display mode | Reflective positive display |
It can display 12 digits, 7‑segment characters, and 12 decimal points.
It uses a three‑wire serial interface.
The module operates between –20 °C and +60 °C.
