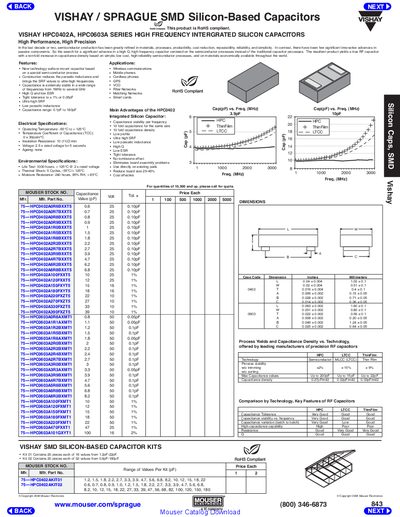

This table lists the specifications of Vishay Volt 75-HPC0402A series SMD silicon capacitors, including capacitance, rated voltage, tolerance, package size and other information.
The HPC0402A and HPC0603A series are high‑frequency integrated silicon capacitors using a special semiconductor process that reduces parasitic inductance and provides ultra‑high SRF. They offer a capacitance range of 0.1 pF to 180 pF, tight tolerance of ±1 % or 0.05 pF, high Q, low ESR, and stable performance from 1 MHz to several GHz.
The document lists electrical and environmental specifications, typical applications such as wireless communications, GPS and filter networks, and details two capacitor kits (Kit 01 and Kit 02) that supply a variety of values for design flexibility.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Capacitance Tolerance | ±1 % or 0.05 pF |
| Capacitance Range | 0.1 pF to 180 pF |
| Insulation Resistance | 10 MΩ·min |
| Voltage Rating | 2.5 × rated voltage for 5 s |
| Temperature Coefficient of Capacitance (TCC) | 0 ± 30 ppm/°C |
| RoHS Compliance | Yes |
The tolerance is ±1 % or 0.05 pF.
Yes, the product is RoHS compliant.
Kit 01 contains 20 pieces of 16 values from 1.2 pF‑22 pF, and Kit 02 contains 20 pieces of 32 values from 0.6 pF‑180 pF.
They operate from –55 °C to +125 °C.
