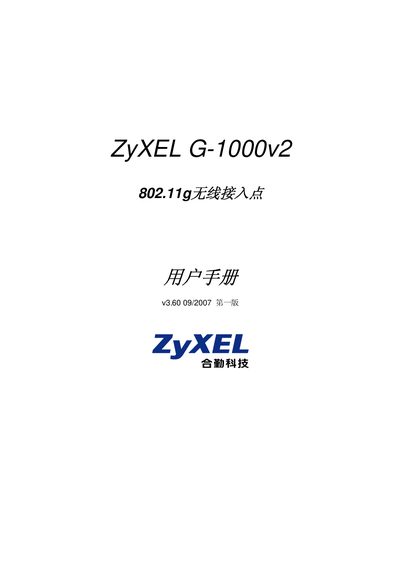

This document is the user manual for ZyXEL G-1000v2 802.11g Wireless Access Point. The manual provides specifications and features of the product, as well as instructions for use and installation.
The G-1000v2 is a 802.11g wireless access point that supports both 802.11b and 802.11g standards, offering up to 54 Mbps data rates and a typical indoor range of 100 m (outdoor 300 m). It includes security features such as WEP, WPA, and WPA2, and can be powered via an AC‑DC adapter (12 V DC, 1 A).
This manual covers product basics, wireless fundamentals, step‑by‑step installation, web‑based configuration, maintenance procedures, troubleshooting tips, and a full list of technical specifications. Safety warnings, warranty information, and global support contacts are also provided. This manual is written in Chinese.
| Network standard | IEEE 802.11g, 802.11b |
|---|---|
| Data rates | 1, 2, 5.5, 11, 24, 36, 48, 54 Mbps |
| Frequency range (US/Canada) | 2.412 ~ 2.462 GHz |
| Antenna | Dual‑polarized 2 dBi |
| Dimensions | 152 mm × 92 mm × 45 mm |
| Weight | 300 g |
| Operating temperature | 0 ~ 50 °C |
| Power adapter voltage | 12 VDC ±10 % |
The indoor wireless range can reach up to 100 meters.
It supports three non‑overlapping channels (1, 6, 11).
