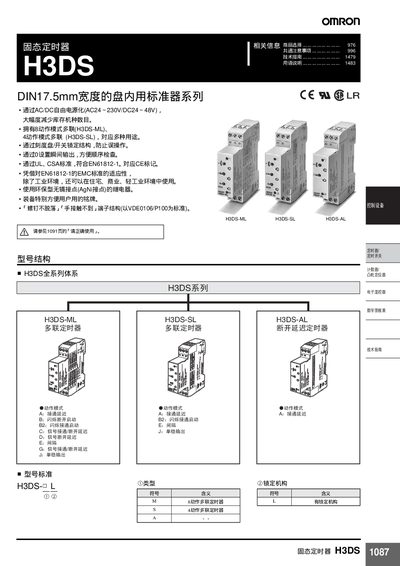

This document introduces the features and characteristics of the solid-state timer H3DS 1087, including AC/DC power supply, multiple operation modes, scale dial/switch lock structure, UL, CSA certification, etc. The timer is suitable for industrial, residential, commercial, and light industrial environments.
The Omron H3DS solid‑state timer series (H3DS‑ML, H3DS‑SL, H3DS‑AL) provides eight configurable action modes for industrial, commercial and residential applications. The manual explains the timer’s power options, input and output connections, and safety requirements.
Detailed sections cover mechanical dimensions, wiring recommendations, installation procedures, and the full set of technical specifications such as rated voltage, power consumption, temperature limits and output ratings. Users are guided on how to set time ranges, lock the dial, and avoid common misuse that could cause mis‑operation or damage. This manual is written in Chinese.
| Rated Input Voltage | AC 24‑230 V, DC 24‑48 V (50/60 Hz) |
|---|---|
| Power Consumption (AC230 V) | 32 VA max (3.0 W) |
| Operating Temperature Range | -10 °C to +55 °C |
| Storage Temperature Range | -25 °C to +65 °C |
| Weight | ≈100 g |
The timer can be powered from AC 24‑230 V or DC 24‑48 V at 50/60 Hz.
Up to 32 VA (3 W) maximum power consumption.
