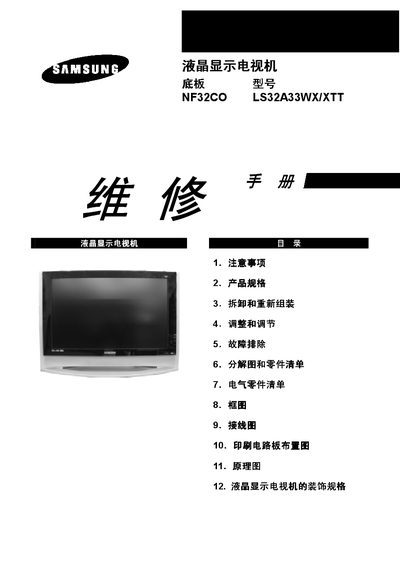

This document is a repair manual from Samsung Electronics Co., Ltd., which mainly introduces the LCD TV's precautions, product specifications, disassembly and reassembly, adjustment and adjustment, troubleshooting, exploded view and parts list, electrical parts list, diagrams, wiring diagrams, printed circuit board layout, schematic diagram, and decorative specifications of the LCD TV.
This manual provides detailed safety warnings, preparation steps, and disassembly/reassembly procedures for the Samsung LS32A33WX/XTT LCD television. It includes instructions for handling ESD‑sensitive components, power‑off requirements, and troubleshooting guidelines.
Technical data such as screen size, resolution, power consumption, dimensions, and pin‑out assignments for DVI, HDMI, and other connectors are listed, along with full schematic diagrams for service technicians. This manual is written in Chinese.
| Maximum Power Consumption | 170 W |
|---|---|
| Dimensions (with stand) | 33.9 x 12.9 x 23.9 inches |
| Weight (with stand) | 23 kg (50.7 lbs) |
| Input Voltage | AC 100‑240 V, 50‑60 Hz |
Before any repair, disconnect the AC power source and downstream power.
Use a grounded wrist strap, avoid static‑generating materials, and place components on a grounded surface before handling.
The TV operates on AC 100‑240 V, 50‑60 Hz.
The maximum power consumption is 170 W.
