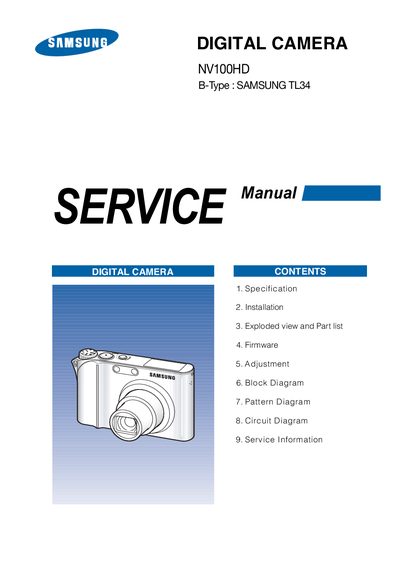

This is a service manual for SAMSUNG TL34 NV100HD digital camera, which includes specifications, installation, exploded view and part list, firmware, adjustment, block diagram, pattern diagram, circuit diagram and service information.
This service manual is intended for technicians and advanced users who need detailed information about the Samsung TL34NV100HD digital camera. It includes full specifications, hardware diagrams, and step‑by‑step adjustment instructions.
The document covers the camera's sensor, lens, LCD, power supply, battery, memory options, and provides exploded views, part numbers, firmware details, and service information such as block and circuit diagrams. This manual is written in Chinese.
| Image Sensor Type | 1/1.72" CCD |
|---|---|
| Effective Pixel | Approx. 14.7 Mega‑pixel |
| Total Pixel | Approx. 15.0 Mega‑pixel |
| Lens Focal Length | 6.0‑21.6 mm (Schneider‑Kreuznach) |
| LCD Monitor Size | 3.0" TFT LCD |
| Shutter Speed (Auto) | 1 – 1/2000 sec |
| ISO Range | Auto, 80‑3200 |
| Battery Model & Capacity | SLB-1137D, 1100 mAh |
| Dimensions (W×H×D) | 94.9 × 59.5 × 19.9 mm |
| Weight | 138 g (without battery and memory card) |
It uses a 1/1.72" CCD image sensor.
The camera uses a lithium‑ion battery model SLB‑1137D with a capacity of 1100 mAh.
The camera supports SD, SDHC, and MMC memory cards.
The LCD screen is a 3.0" colour TFT display.
