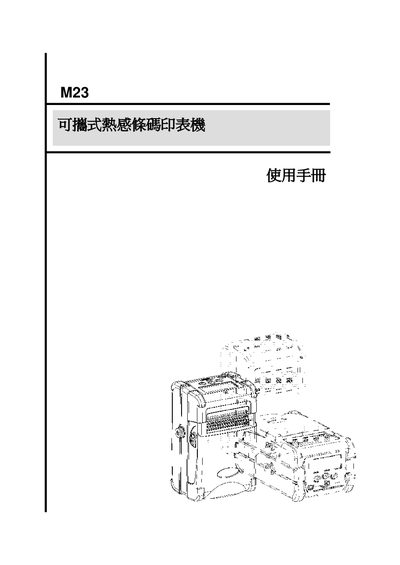

TSC M23 Portable Thermal Barcode Printer User Manual
This manual introduces the TSC M23 portable thermal barcode printer, describing its features such as support for various label media, a built‑in LCD, optional Wi‑Fi (802.11b) and Bluetooth modules, and a rechargeable lithium battery. It also lists the standard accessories included in the package.
The guide covers step‑by‑step installation of the battery, strap, label media, and communication interfaces, explains panel button functions and menu navigation, and provides detailed procedures for printing, firmware updates, power‑on options, troubleshooting, and routine maintenance. This manual is written in Chinese.
TSC M23 specifications
| Battery type | Rechargeable lithium |
|---|---|
| USB interface | USB port |
| Serial interface | RS‑232 port |
| Optional wireless | 802.11b Wi‑Fi module (optional) |
| Optional Bluetooth | Bluetooth module (optional) |
Source: TSC M23 Portable Thermal Barcode Printer User Manual
All TSC M23 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the rechargeable battery?
Open the paper‑roll cover by turning the two side levers, then insert the battery into the slot as shown in the illustration.
How do I install the rechargeable battery?
Open the paper roll cover, turn the side levers, and insert the battery into the position shown in the diagram.
What should I check before cleaning the printer?
Verify that all components and power cables are intact and not damaged before cleaning.
