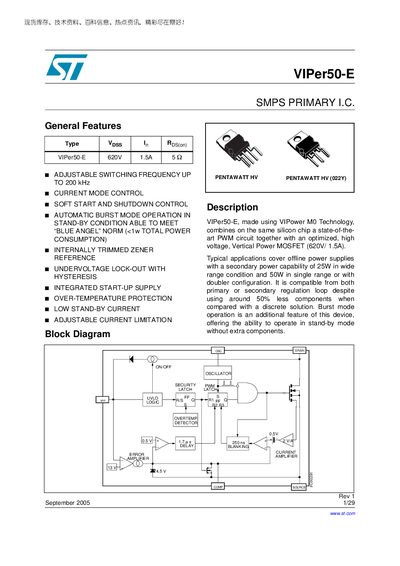

STMicroelectronics VIPer50-E Handbook
The VIPer50‑E is a high‑voltage SMPS integrating a PWM controller and a 620 V/1.5 A vertical power MOSFET on a single silicon chip. It offers adjustable switching frequency up to 200 kHz, current‑mode control, soft‑start, and automatic burst‑mode operation for low‑power standby.
This handbook contains the device’s electrical and thermal ratings, pin functions, typical application circuits, layout guidelines, and revision history, helping designers implement the part in offline power‑supply designs.
STMicroelectronics VIPER50-E specifications
| Maximum Continuous Current (IP) | 1.5 A |
|---|---|
| Supply Voltage (VPP) | 15 V |
| Power Dissipation (at 25 °C) | 60 W |
| Storage Temperature Range | -65 °C to 150 °C |
| Oscillator Frequency | 90 kHz – 110 kHz |
| Output Capacitance (COSS) | 120 pF |
All STMicroelectronics VIPER50-E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the oscillator frequency range?
The internal oscillator can be set between 90 kHz and 110 kHz.
What is the power dissipation at 25 °C?
The device can dissipate up to 60 W at a junction temperature of 25 °C.
What is the maximum drain‑source voltage of the VIPer50‑E?
The device can handle a continuous drain‑source voltage up to 620 V.
What switching frequency range can be set on the VIPer50‑E?
The switching frequency is adjustable up to 200 kHz.
