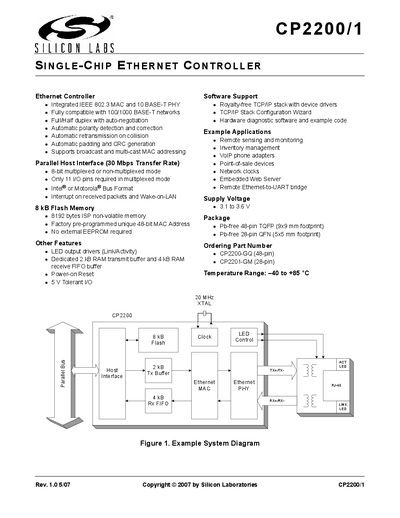

Silicon Laboratories CP2200/1 User Manual
The CP2200/1 is a single‑chip Ethernet controller that integrates an IEEE 802.3 MAC, a 10BASE‑T PHY, and 8 kB of on‑chip flash memory. It is offered in a 48‑pin TQFP (9 × 9 mm) and a 28‑pin QFN (5 × 5 mm) package and supports both Intel and Motorola bus formats in multiplexed and non‑multiplexed modes, with data rates up to 30 Mbps.
The manual covers system overview, typical connection diagrams, absolute maximum ratings, electrical characteristics, pinout definitions, functional description, memory and register maps, interrupt and reset sources, power modes, transmit/receive interfaces, flash programming, MAC and PHY operation, and parallel interface options. Contact information and legal notices are provided at the end.
Silicon Laboratories CP2200 specifications
| Integrated Components | IEEE 802.3 MAC and 10 BASE-T PHY |
|---|---|
| Flash Memory Size | 8 kB |
| RAM Transmit Buffer | 2 kB |
| RAM Receive FIFO Buffer | 4 kB |
| Supply Voltage | 3.1 to 3.6 V |
| Operating Temperature Range | -40 to +85 °C |
| Package Types | Pb-free 48-pin TQFP and 28-pin QFN |
Source: Silicon Labs CP2200/1 Single-Chip Ethernet Controller Datasheet
All Silicon Laboratories CP2200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the data transfer rate of the parallel host interface?
The data transfer rate in non-multiplexed mode can exceed 30 Mbps.
From: Silicon Labs CP2200/1 Single-Chip Ethernet Controller Datasheet
Does the device require an external EEPROM for the MAC address?
No, it does not require an external EEPROM as the unique 48-bit MAC Address is factory pre-programmed.
From: Silicon Labs CP2200/1 Single-Chip Ethernet Controller Datasheet
What supply voltage does the CP2200/1 require?
The device operates from 3.1 V up to 5.5 V.
How much on‑chip flash memory is available?
The CP2200/1 includes 8 kB of non‑volatile flash memory.
