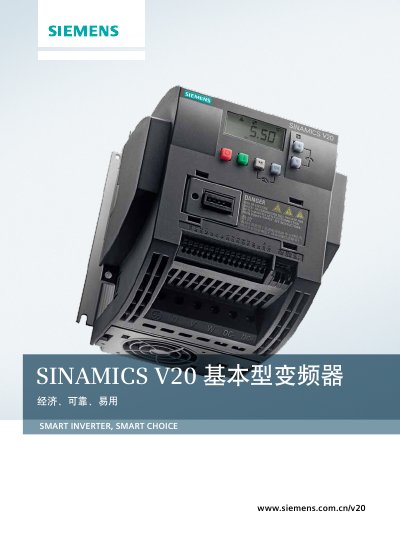

Siemens SINAMICS V20 SMART Inverter Product Leaflet

A product leaflet for the Siemens SINAMICS V20 SMART Inverter, highlighting its economic, reliable, and easy-to-use features for general industrial…

Brand: Siemens
Category: Motor
Document type: Product Leaflet
Language: Chinese
Pages: 14
File format: PDF
File size: 2.2 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BF9E520D0F3936264A65616F61DA91E3
PDF: Siemens SINAMICS V20 SMART Inverter Product Leaflet PDF

About this manual

The Siemens SINAMICS V20 is a basic type inverter designed for general-purpose applications in manufacturing, mobile equipment, pumps, fans, and compressors. It offers an economical, reliable, and easy-to-use drive solution with fast commissioning and stable operation. The inverter covers a power range from 0.12 kW to 15 kW and supports multiple control modes including V/f, V2/f, and FCC. This manual is written in Chinese.

What's inside

Typical Applications
Features
Options
Technical Data
Installation and Environment
Energy Saving
Communication
Dimensions and Weight

Specifications

Power Range (1AC 230 V)	0.12 ... 3.0 kW
Power Range (3AC 400 V)	0.37 ... 15.0 kW
Voltage Range (1AC)	200 V ... 240 V
Voltage Range (3AC)	380 V ... 480 V

Frequently asked questions

What is the power output range of the SINAMICS V20 inverter?

The power output covers a range from 0.12 kW to 15 kW.

What is the maximum operating temperature for the inverter?

The inverter can operate at an ambient temperature of up to 60ºC.

What is the maximum length for an unshielded motor cable?

The maximum length for an unshielded cable is 50 m.
