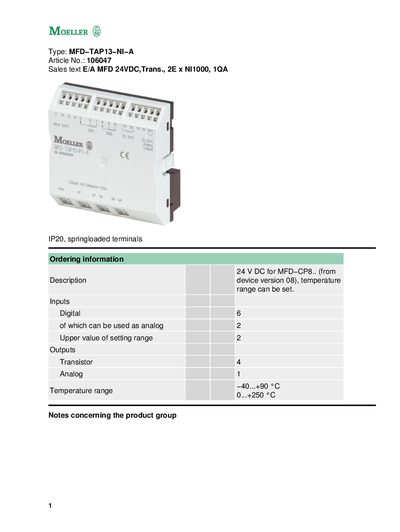

MOELLER - Type: MFD-TAP13-NI-A Article No.: 106047 Sales text E/A MFD 24VDC Trans. 2E x NI1000 1QA Manual
The MFD‑TAP13‑NI‑A is a 24 V DC transistor output module with six digital inputs (two usable as analog) and four transistor outputs. It is supplied with spring‑loaded terminals (IP20) and can be mounted directly into the power‑supply unit.
The sheet lists detailed technical data such as weight (0.14 kg), terminal capacities, protection class, temperature range (‑25 °C to +55 °C), vibration and shock resistance, and EMC compliance (EN 55011 Class B, EN 55022 Class B). Ordering information and accessory part numbers are also included.
Moeller NI1000 specifications
| Operating voltage | 24 V DC |
|---|---|
| Digital inputs | 6 (2 usable as analog) |
| Transistor outputs | 4 |
| Weight | 0.14 kg |
| Terminal capacity (solid) | 0.24 mm² (AWG 24‑12) |
| Terminal capacity (flexible) | 0.22 mm² (AWG 24‑12) |
| Operating temperature range | -25 °C to +55 °C |
| Vibration amplitude | 0.15 mm |
| Mechanical shock resistance | 15 g / 11 ms |
| EMC compliance | EN 55011 Class B, EN 55022 Class B |
