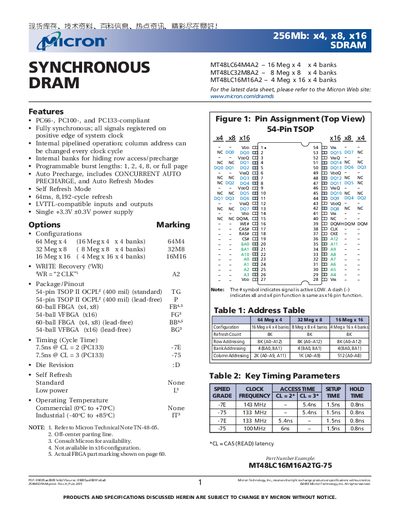

Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
The MT48LC series are high‑speed synchronous SDRAM devices offered in 256 Mb capacities with x4, x8, and x16 data widths. They are internally organized as a quad‑bank architecture, providing up to 8 192 rows and variable column counts depending on the data width.
Key features include programmable burst lengths, auto‑precharge, self‑refresh, LVITL‑compatible I/O, and operation at a single 3.3 V supply. The devices are supplied in several packages such as 54‑pin TSOP II, 60‑ball FBGA, and 54‑ball VEBGA, and meet both commercial (0 °C – +70 °C) and industrial (‑40 °C – +85 °C) temperature specifications.
Micron MT48LC16M16A2 specifications
| Capacity | 256 Mb (x4, x8, x16) |
|---|---|
| Organization | Quad‑bank DRAM |
| Supply Voltage | 3.3 V |
| Burst Lengths | 1, 2, 4, 8, or full page |
| Refresh Interval | 64 ms, 8 192‑cycle refresh |
Source: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
All Micron MT48LC16M16A2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the MT48LC SDRAM require?
It operates from a single 3.3 V supply.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
What burst lengths can be programmed?
Burst lengths of 1, 2, 4, 8, or a full page can be selected.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
What supply voltage does the MT48LC64M4A2 SDRAM require?
It requires a +3.3 V supply with a tolerance of ±0.3 V.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
Which burst lengths are supported by the SDRAM?
The SDRAM supports programmable burst lengths of 1, 2, 4, 8, or a full page.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDRAM Datasheet
What supply voltage does the MT48LC64M4A2 require?
It operates from a +3.3 V supply with a tolerance of ±0.3 V.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDR SDRAM Datasheet
What are the commercial operating temperature limits?
The commercial version is rated for a case temperature from 0 °C up to 80 °C.
From: Micron MT48LC64M4A2 / MT48LC32M8A2 / MT48LC16M16A2 SDR SDRAM Datasheet
