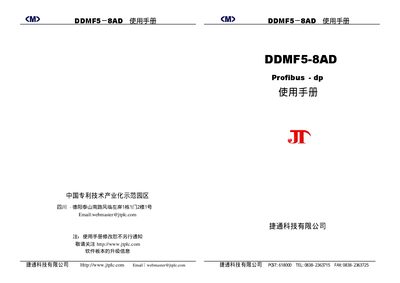

JTPLC DDMF5-8AD Profibus-DP User Manual
This manual describes the DDMF5-8AD Profibus‑DP module, its main functions, and compatibility with PROFIBUS‑DP networks. It lists the module’s electrical specifications, supported input types, and wiring requirements.
The guide walks the user through hardware installation, GSD file setup in STEP 7, parameter configuration, and troubleshooting steps. Detailed tables show communication speeds, power consumption, dimensions, and environmental limits. This manual is written in Chinese.
JTPLC DDMF5-8ADP specifications
| Input Type | 12‑bit PT‑100 temperature input |
|---|---|
| Power Supply | DC 24 V (5 % tolerance) |
| Communication Speed | 19.2 kbps – 12 Mbps |
| Dimensions (L×W×H) | 128 mm × 71 mm × 26 mm |
Source: JTPLC DDMF5-8ADP Profibus DP Interface Module User Manual
All JTPLC DDMF5-8ADP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum power consumption of the DDMF5-8AD?
The module consumes up to 3840 mW of power.
What power supply voltage does the DDMF5-8ADP require?
It requires a DC 24 V supply with a 5 % tolerance.
From: JTPLC DDMF5-8ADP Profibus DP Interface Module User Manual
What communication speeds are supported on the Profibus DP interface?
Supported speeds range from 19.2 kbps up to 12 Mbps.
From: JTPLC DDMF5-8ADP Profibus DP Interface Module User Manual
