Start here

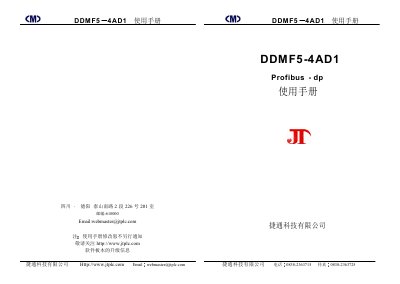

JTPLC DDMF5-4AD1 Profibus DP User Manual
The DDMF5-4AD1 is a 4‑channel, 16‑bit analog input module designed for Profibus‑DP networks. It supports 0‑5 V or 4‑20 mA signals, offers isolated power and communication, and is compatible with all Profibus master devices.
The manual explains how to install the module, set its address via dip switch SW1, configure the GSD file in STEP 7, and connect it to the Profibus‑DP bus. It also details wiring diagrams, parameter settings, and troubleshooting indicators such as the TXD and RXD LEDs. This manual is written in Chinese.
JTPLC DDMF5-4AD specifications
| Working voltage | DC24V |
|---|---|
| Maximum power consumption | 4080 mW |
| Communication interface | Standard Profibus |
| Communication speed | 9.6 Kbps – 6 Mbps (auto‑adaptive) |
| Analog input channels | 4 channels, 16‑bit resolution |
| Dimensions (W×H×L) | 71 mm × 26 mm × 128 mm |
All JTPLC DDMF5-4AD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I set the module address?
The address is set with dip switch SW1; each switch position selects a station address in hexadecimal.
How do I install the GSD file for the DDMF5‑4AD1?
In SIMATIC Manager open the Hardware view, choose Options → Install New GSD, and select the file from the Jt_gsd folder.
What is the required power supply for the DDMF5‑4AD module?
The module requires a DC 24 V power supply with a current rating of 120 mA.
How many input channels does the module provide and what are their ranges?
It provides four input channels, each supporting either 0‑20 mA or 0‑5 V signals.
Which Profibus DP data rates are supported?
Profibus DP speeds up to 12 Mbps are supported (e.g., 19.2 kbps to 12 Mbps).
