Key facts
- Brand
- JTPLC
- Model
- CMDF5-8AD
- Category
- Other device
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-02-03
Start here

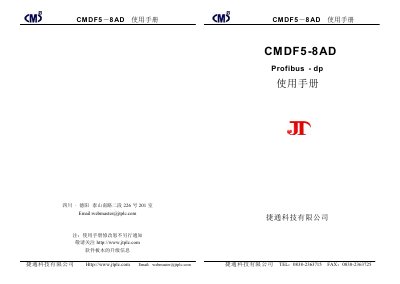

JTPLC CMDF5-8AD Profibus-dp Manual
This manual describes the CMDF5‑8AD Profibus‑dp module, a communication interface for PLC, DCS, PCS and other control systems. It is intended for engineers and technicians who need to install, configure and maintain the device.
The document covers hardware overview, power supply requirements, Profibus‑dp communication settings, I/O voltage and current ranges, LED status indicators, and troubleshooting procedures. Detailed tables list wiring diagrams, parameter tables and step‑by‑step configuration commands. This manual is written in Chinese.
JTPLC CMDF5-8AD specifications
| A/D Resolution | 12 Bit |
|---|---|
| Power Supply Voltage | DC 9–30 V |
| Profibus‑dp Speed | 9.6 kbps – 12 Mbps |
| Power Consumption | 2100 mW |
All JTPLC CMDF5-8AD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I set the Profibus‑dp communication speed?
Use the SET/SEL commands in the configuration tables to select a speed between 9.6 kbps and 12 Mbps.
What are the input voltage and current ranges for the module?
Inputs accept 0 – 5 V and 0 – 20 mA signals.
What input voltage and current ranges are supported?
It supports 0‑5 V, 0‑20 mA, 1‑5 V and 4‑20 mA input types.
What is the required power supply voltage for the module?
The module operates from a 24 V DC supply and accepts a range of 9‑30 V DC.
What power supply voltage is required for the module?
The module operates from a DC supply of 9 V to 30 V.
From: JTPLC technology CMDF5-8ADP PT-100 platinum resistance Profibus - dp Manual
Which PROFIBUS‑DP communication speeds are supported?
Supported PROFIBUS‑DP speeds range from 9.6 Kbps up to 12 Mbps.
From: JTPLC technology CMDF5-8ADP PT-100 platinum resistance Profibus - dp Manual
