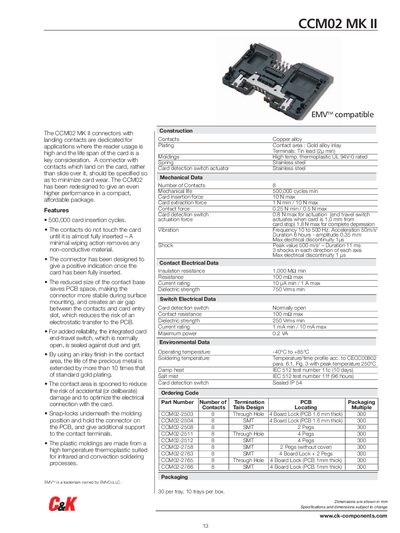

Cannon CCM02 MK II Connector Datasheet
The CCM02 MK II connector is designed for high‑usage card reader applications, offering up to 500,000 insertion cycles and a contact design that minimizes card wear. Features include a sealed end‑travel switch, gold‑alloy inlay contacts, and a compact, thermoplastic housing.
The document provides detailed mechanical data, electrical performance figures, environmental limits, and ordering codes for both through‑hole and SMT versions, along with dimensional drawings and PCB layout guidance.
ITT CCM02 specifications
| Card insertion cycles | 500,000 cycles |
|---|---|
| Number of contacts | 8 |
| Mechanical life | 500,000 cycles min |
| Card insertion force | 10 N max |
| Contact resistance | 100 mΩ max |
| Insulation resistance | 1,000 MΩ min |
| Dielectric strength (contact) | 750 V min |
| Operating temperature | -40°C to +85°C |
All ITT CCM02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the mechanical life of the CCM02 MK II connector?
The connector is rated for a mechanical life of at least 500,000 insertion cycles.
What is the contact resistance of the connector?
The contact resistance is specified as up to 100 mΩ.
What is the mechanical life of the CCM02 MK II connector?
The connector is rated for at least 500,000 insertion cycles.
What temperature range can the connector operate in?
It can operate from –40 °C to +85 °C.
