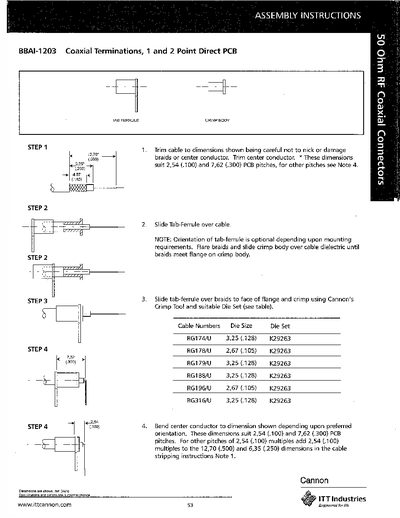

ITT BBAI-1203 Assembly Instructions
These assembly instructions describe how to install the ITT BBAI-1203 coaxial terminations on 1‑ and 2‑point direct PCB configurations. The guide provides dimensional data, cable preparation steps, and required tooling for a reliable connection.
The procedure is broken into four steps, covering tab‑ferrule placement, crimp body application, cable trimming, and final crimping with a Cannon crimp tool. Notes address optional tab‑ferrule orientation, PCB pitch compatibility, and die‑set specifications for various RG cable types.
ITT BBAI-1203 specifications
| Supported PCB pitches | 2.54 mm (0.100 in) and 7.62 mm (0.300 in) |
|---|---|
| Die size for RG174/U | 3.25 mm (0.128 in) |
| Die size for RG178/U | 2.67 mm (0.105 in) |
| Die set part number | K29263 |
| Supported cable types | RG174/U, RG178/U, RG179/U, RG188/U, RG196/U, RG316/U |
All ITT BBAI-1203 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What tool is required for crimping the BBAI-1203 terminations?
Use Cannon’s Crimp Tool together with the appropriate die set (e.g., K29263).
Which PCB pitch sizes are compatible with the BBAI-1203 terminations?
The terminations fit PCB pitches of 2.54 mm (0.100 in) and 7.62 mm (0.300 in).
What tool is required to crimp the BBAI-1203 terminations?
Use Cannon’s Crimp Tool together with the specified die set (K29263).
From: ITT Industries BBAI-1203 Coaxial Termination Assembly Instructions
Which PCB pitches are supported by the BBAI-1203 terminations?
The terminations are designed for 2.54 mm (0.100 in) and 7.62 mm (0.300 in) PCB pitches.
From: ITT Industries BBAI-1203 Coaxial Termination Assembly Instructions
