Start here

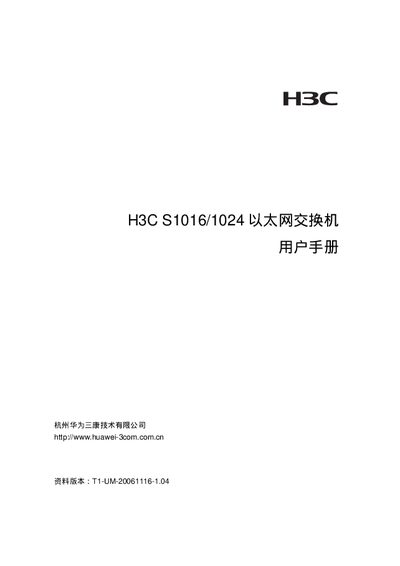

HUAWEIH3C S1016/1024 Network Switche user manual
The manual introduces the H3C S1016/1024 Ethernet switch, an unmanaged desktop‑level Layer‑2 switch offering either 16 (S1016) or 24 (S1024) 10/100Base‑TX auto‑negotiating ports. It lists key specifications such as dimensions, weight, power consumption, operating temperature, and MAC address table capacity.
Installation instructions cover safety precautions, mounting requirements, power connection, and LED indicator meanings. The guide emphasizes proper ventilation, grounding, and anti‑static measures to ensure reliable operation. This manual is written in Chinese.
Huawei HUAWEIH3C specifications
| Dimensions (L×W×H) | S1016: 266 mm × 162 mm × 44 mm; S1024: 330 mm × 230 mm × 44 mm |
|---|---|
| Weight | S1016: 1.5 kg; S1024: 2 kg |
| Input voltage | AC 100 V–240 V, 50/60 Hz |
| Power consumption | S1016: 6 W; S1024: 9 W |
| Operating temperature | 0 °C–40 °C |
| Storage temperature | -10 °C–70 °C |
| Operating humidity | 20 %–85 % non‑condensing |
All Huawei HUAWEIH3C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many Ethernet ports does the S1016 model have?
The S1016 model provides 16 fixed 10/100Base‑TX auto‑negotiating ports.
What are the dimensions of the S1024 switch?
The S1024 switch measures 330 mm × 230 mm × 44 mm (L×W×H).
How many Ethernet ports does the S1208 have and what type are they?
The S1208 provides eight fixed 10/100/1000Base‑T auto‑negotiating Ethernet ports.
