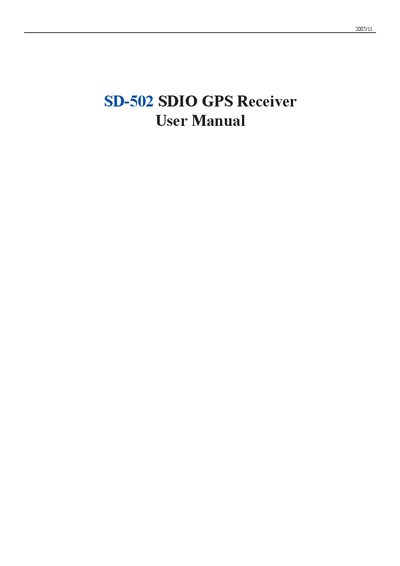

GlobalSat SD-502 SDIO GPS Receiver User Manual
The SD-502 is an SDIO‑interface GPS receiver with a built‑in 512 MB memory and a high‑sensitivity antenna that can receive signals from all directions. It is designed for Pocket PC platforms such as Dell Axim, HP iPAQ, and others, and supports NMEA 0183 and SiRF binary protocols.
This manual covers the system specifications, features, package contents, LED status indications, compatible devices, and detailed driver installation procedures for Windows CE Pocket PCs. It also explains how to verify driver installation and check version information.
GlobalSat SD-502 specifications
| Chipset | SiRF Start Ill |
|---|---|
| Frequency | L1, 1575.42 MHz |
| Channels | 20 channel all‑in‑view tracking |
| Horizontal Position Accuracy | 10 m (2D RMS) |
| Velocity Accuracy | 0.1 m/s |
| Hot Start Time | 1 s (average) |
| Operating Temperature | -10 °C ~ +70 °C |
| Power Consumption | 110 mA |
| Dimensions | 95 mm × 30 mm × 13 mm |
| Weight | approximately 30 g |
| Memory Size | 512 MB |
All GlobalSat SD-502 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the driver for the SD-502 on a Pocket PC?
Insert the CD, let AutoRun start, then click the “Install Driver for WinCE” button and follow the on‑screen prompts.
What does the GPS status LED indicate?
A blinking green LED means the GPS position is fixed, while a steady green LED means it is not fixed.
What does the green LED indicate on the SD-502?
A blinking green LED means the GPS position is fixed, while a steady green LED means the GPS position is not fixed.
Which Pocket PC devices are compatible with the SD-502?
The SD-502 works with Dell Axim X3, X30, X50, X50V, X51V; HP iPAQ h1930, h1940, h1950, h2210, h2750, h4150, hx2410, hx4700, h6315, rx3115; Eten M500; Fujitsu Loox 720; Asus MyPal 730; and T‑Mobile MDA compact.
