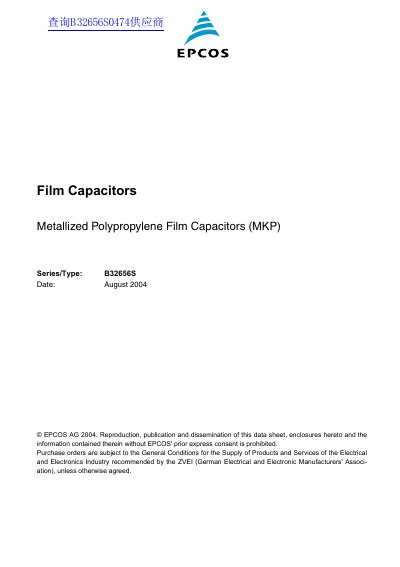

EPCOS B32656S Film Capacitor Datasheet
The B32656S series are metallized polypropylene (MKP) film capacitors designed for IGBT snubbering and other high‑pulse‑strength applications. They feature a plastic case with epoxy resin sealing and strap terminals for reliable mounting.
Key data include rated voltages from 850 VDC to 2000 VDC, capacitance values from 47 nF up to 2200 nF, a maximum operating temperature of +100 °C, and compact dimensions such as 12.0 × 22.5 × 42.0 mm. Electrical parameters like ESR, insulation resistance, and pulse handling capability are also detailed.
Epcos B32656S specifications
| Maximum operating temperature | +100 °C |
|---|---|
| Dielectric material | Polypropylene (PP) |
| Terminal type | Strap terminals, tinned copper |
| Rated voltage range | 850‑2000 VDC (450‑800 VAC) |
All Epcos B32656S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical application for the B32656S series?
The B32656S series is intended for IGBT snubbering applications.
What is the maximum operating temperature of the B32656S capacitors?
The capacitors can operate up to +100 °C.
What is the maximum operating temperature of the B32656S capacitors?
The capacitors are rated for a maximum operating temperature of +100 °C.
What are the typical applications for the B32656S series?
They are typically used for IGBT snubbering.
