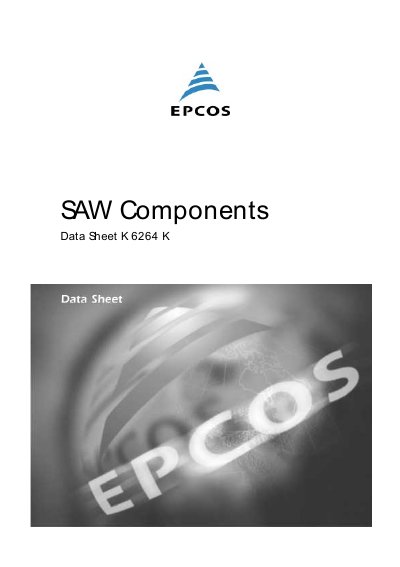

EPCOS K 6264 K Datasheet
This datasheet describes the EPCOS K 6264 K surface acoustic wave (SAW) component, a 38 MHz intermediate‑frequency filter available in a plastic DIP10K package. It lists features such as switchable M/N and D/K modes, constant group delay, and compliance with CENELEC EN 55020 terminals.
Technical details include maximum ratings, temperature ranges, voltage limits, insertion attenuation, and frequency‑response characteristics for both M/N and D/K configurations, as well as time‑domain responses and group‑delay specifications.
Epcos K 6264 K specifications
| Center frequency | 38.00 MHz |
|---|---|
| Package type | Plastic DIP10K |
| Operable temperature range | -25 °C to +65 °C |
| Storage temperature range | -40 °C to +85 °C |
| DC voltage rating | 12 V between any terminals |
| AC voltage rating | 10 V peak‑to‑peak between any terminals |
| Temperature coefficient of frequency | -72 ppm/K |
