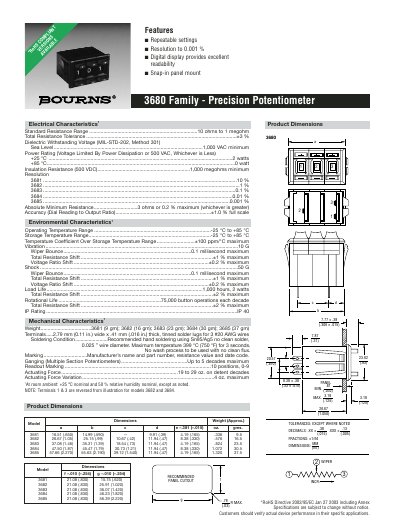

3680 Family Precision Potentiometer Datasheet
The 3680 Family precision potentiometer provides repeatable settings with a resolution as fine as 0.001 % and a digital display for easy readability. It is designed for snap‑in panel mounting and includes a range of models from 3681 to 3685, each with specific resistance ranges and mechanical characteristics.
Detailed electrical characteristics cover resistance ranges from 10 Ω to 1 MΩ, tolerance, power rating, insulation resistance and environmental limits. Mechanical data include weight, terminal dimensions, soldering conditions and IP rating, while dimensional tables list the size and weight of each model.
Bourns 3680 Family specifications
| Standard Resistance Range | 10 Ω to 1 MΩ |
|---|---|
| Total Resistance Tolerance | ±3 % |
| Operating Temperature Range | -25 °C to +85 °C |
| IP Rating | IP 40 |
