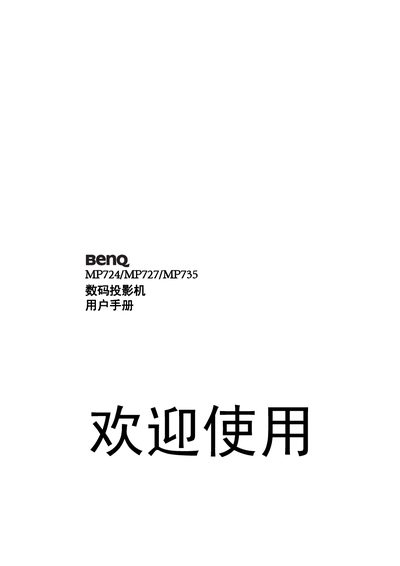

BenQ MP724/MP727/MP735 Digital Projector User Manual
This manual provides instructions for the BenQ MP724, MP727, and MP735 digital projectors. It covers safety precautions, setup, and operation features such as image adjustment, signal connection, and menu navigation. The document also includes sections on maintenance, bulb information, and troubleshooting common issues. This manual is written in Chinese.
Read onlineBenQ MP724 specifications
| Resolution | XGA (1024×768) |
|---|---|
| Brightness | 3500 ANSI lumens (MP724) / 4300 ANSI lumens (MP727) |
| Lamp Power | 280 W (MP724) / 200 W (MP727) |
| Contrast Ratio | 2800:1 (MP724) / 3500:1 (MP727) |
| Weight | 3.4 kg |
| Noise Level (light mode) | 37 dB / 34 dB |
| Supported Resolutions | VGA (640×480) up to UXGA (1600×1200) |
| Throw Ratio | 1.15:1 |
| Lens Focal Length | F=2.55‑2.72 (MP724) / F=2.6‑2.81 (MP727) |
| Color Depth | 16.7 million colors (full‑color) |
| Aspect Ratio | 4:3 / 16:9 selectable |
| Horizontal Frequency | 31‑90 kHz |
| Vertical Frequency | 50‑85 Hz |
| HDMI Version | HDMI 1.3 |
| HDCP Support | Yes |
| Power Supply | 100‑240 VAC, 50‑60 Hz |
| Maximum Power Consumption | 350 W |
| Warranty | 3 years full warranty; lamp 1 year or 1 000 hours |
Source: BenQ MP724/MP727 Selection Guide
All BenQ MP724 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum recommended ambient temperature for using this projector?
The projector should not be used in environments where the ambient temperature exceeds 35°C / 95°F.
What is the required minimum distance between the projector and a wall?
You must ensure at least 50 centimeters of space between the projector and the wall to maintain proper airflow.
What is the brightness of the BenQ MP724 projector?
The BenQ MP724 has a brightness of 3500 ANSI lumens.
How long is the warranty for BenQ MP724/MP727 projectors?
Both models come with a three‑year full warranty, and the lamp is covered for one year or up to 1 000 hours.
How long should you wait before replacing the lamp?
You should wait about 45 minutes for the projector to cool down before changing the lamp.
What AC voltage range can the projector operate on?
The projector can operate on an AC voltage range of 100 to 240 volts.
