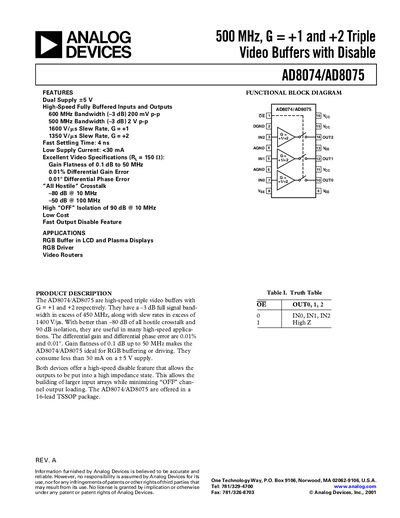

The AD8074/AD8075 are high-performance triple video buffers with G = +1 and +2 gains, respectively. They have a –3 dB full-signal bandwidth of 200 mV p-p to 600 MHz or 2 V p-p to 500 MHz. The AD8074/AD8075 provide a fast output disable feature for applications requiring fast switching. The AD8074/AD8075 are dual supply (+5 V) and have fully buffered inputs and outputs. They have a slew rate of 1600 V/μs, G = +1, and 1350 V/μs, G = +2, and have a fast settling time of 4 ns.
The AD8074 and AD8075 are high‑speed triple video buffers designed for RGB buffering and driver applications in LCD and plasma displays, video routers, and other high‑speed video systems. They operate from a single +5 V supply, consume less than 30 mA, and feature a fast output‑disable function that places outputs in a high‑impedance state.
Both devices are offered in a 16‑lead TSSOP package and include protection against short‑circuit, over‑temperature, and electrostatic discharge. Detailed specifications cover dynamic performance, noise, power supply characteristics, and absolute maximum ratings.
| Small‑signal -3 dB Bandwidth (typ) | 600 MHz |
|---|---|
| Large‑signal -3 dB Bandwidth (typ) | 500 MHz |
| Slew Rate (typ, G=+1) | 1600 V/µs |
| Supply Voltage Range | +4.5 V to +5.5 V |
| Quiescent Current (All Channels OFF, typ) | 5.5 mA |
| Input Offset Voltage (typ) | 2.5 mV |
| Short‑Circuit Current (protected) | 70 mA |
| OFF Isolation (typ, 10 MHz) | 90 dB |
The devices operate from +4.5 V to +5.5 V.
The typical slew rate for the AD8074 (G = +1) is 1600 V/µs.
When all channels are off, the quiescent current is about 5.5 mA.
The protected short‑circuit current rating is 70 mA.
