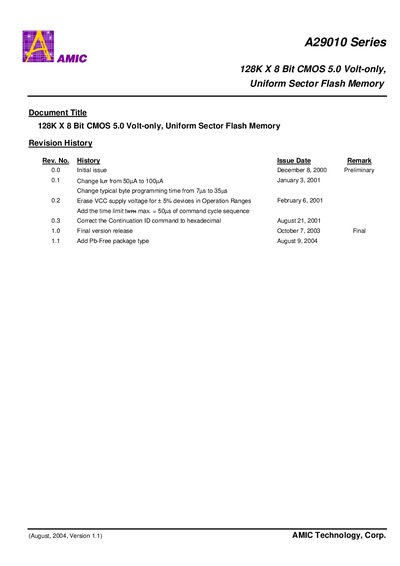

AMIC A29010 Series Flash Memory Datasheet
The A29010 is a 5.0 V‑only CMOS flash memory organized as 128 Kbytes (128 K × 8 bits) with flexible 32 KB sector architecture. It is offered in 32‑pin PLCC, TSOP and PDIP packages and can be programmed in‑system without a separate VPP supply.
Key capabilities include fast access times (55 ns, 70 ns, 90 ns), typical active read current of 20 mA, program/erase current of 30 mA, and a standby current of 1 pA. The device supports full‑chip erase, sector protection, erase‑suspend/resume, and is compatible with JEDEC single‑power‑supply flash standards.
AMIC A29010 specifications
| Memory capacity | 128 Kbytes (128 K × 8 bits) |
|---|---|
| Access times | 55 ns / 70 ns / 90 ns (max) |
| Active read current | 20 mA typical |
| Program/erase current | 30 mA typical |
| Standby current | 1 pA typical |
| Program/erase cycles per sector | 100 000 (typical) |
| Data retention | 20 years at 125 °C |
| Package options | 32‑pin PLCC, TSOP (forward type), PDIP |
All AMIC A29010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many program/erase cycles can each sector endure?
Each sector is rated for about 100 000 program/erase cycles.
Can the A29010 be erased while other sectors are being accessed?
Yes, the device supports erase‑suspend/resume, allowing reads or programming of non‑erasing sectors while a sector erase is paused.
What supply voltage does the A29010 require?
The A29010 operates from a single 5.0 V supply for both read and write functions.
From: AMIC A29010 Series 128K x 8‑Bit 5.0 V Flash Memory Datasheet
How many program/erase cycles can each sector endure?
Each sector can typically be programmed and erased about 100 000 times.
From: AMIC A29010 Series 128K x 8‑Bit 5.0 V Flash Memory Datasheet
