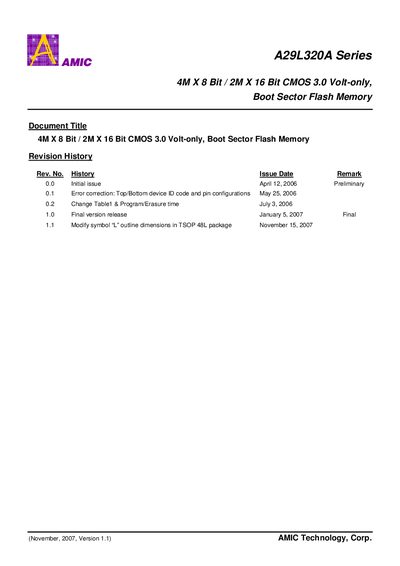

AMIC A29L320A Series Flash Memory Datasheet
The A29L320A Series is a 32Mbit, 3.3 V‑only CMOS flash memory offered in 4M × 8‑bit or 2M × 16‑bit configurations. It operates from a single 3.0 V supply and includes features such as single‑power‑supply operation, flexible sector architecture, and embedded erase/program algorithms.
The device supports eight 8 KB sectors and sixty‑three 64 KB sectors, with options for TSOP‑48 or 48‑ball TFBGA packages. Detailed pin descriptions, absolute maximum ratings, and operating ranges are provided, along with command sequences for reading, programming, erasing, and power‑saving modes.
AMIC A29L320A specifications
| Memory capacity | 32 Mbit |
|---|---|
| Organization | 4M × 8 bit / 2M × 16 bit |
| Supply voltage range | 2.7 V to 3.6 V |
| Active read current | 2 mA at 1 MHz |
| Program/erase current | 20 mA typical |
| Standby current | 500 nA typical |
| Sector architecture | Eight 8 KB sectors, sixty‑three 64 KB sectors |
| Package options | 48‑pin TSOP or 48‑ball TFBGA |
All AMIC A29L320A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the A29L320A?
The device operates from 2.7 V to 3.6 V.
How many sectors does the flash memory have and what are their sizes?
It provides eight 8 KB sectors and sixty‑three 64 KB sectors.
What is the supply voltage range for the A29L320A series?
The device operates with a regulated voltage range of 2.7 V to 3.6 V.
How many program/erase cycles does the A29L320A support per sector?
It supports typical 100,000 program/erase cycles per sector.
