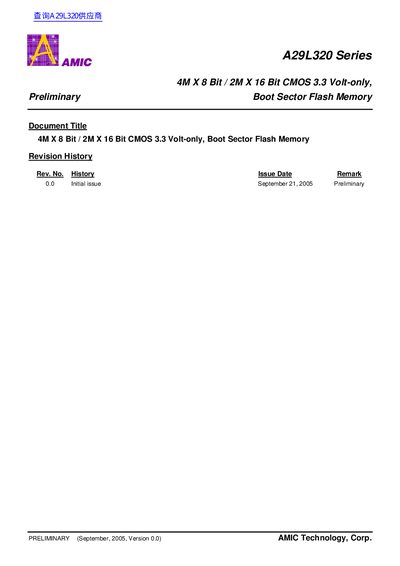

AMIC A29L320 Series 4M x 8 Bit Flash Memory Datasheet
The AMIC A29L320 Series is a 32Mbit (4M x 8 Bit or 2M x 16 Bit) CMOS Flash memory designed for 3.3 volt-only operation. It features a preliminary boot sector architecture, allowing for flexible sector erasure and protection. The device is compatible with JEDEC standards and supports in-system programming without requiring additional VPP voltage.
Read onlineAMIC A29L320 specifications
| Capacity | 32Mbit (4M x 8 Bit / 2M x 16 Bit) |
|---|---|
| Voltage | 3.0 to 3.6 volt |
| Access Time | 70/90 ns |
| Active Read Current | 9 mA typical |
| Program/Erase Current | 20 mA typical |
| Standby Current | 200 nA |
| Data Retention | 20-year |
| Program/Erase Cycles | 10,000 |
| Packages | 48-ball FBGA, 44-pin SOP, 48-Pin TSOP |
Source: AMIC A29L320 Series 4M x 8 Bit Flash Memory Datasheet
All AMIC A29L320 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the A29L320 require VPP voltage for programming?
No, the device is designed to be programmed in-system with the standard system 3.3 volt VCC supply.
What are the access times for the A29L320?
The maximum access times are 70ns and 90ns.
What is the voltage requirement for this Flash memory?
The device operates with a single power supply and requires regulated voltages between 3.0 to 3.6 volts.
From: AMIC A29L320 Series Boot Sector Flash Memory Datasheet
Does programming this chip require an external high-voltage source?
No, the A29L320 can be programmed in-system using only the standard system 3.3 volt VCC supply.
From: AMIC A29L320 Series Boot Sector Flash Memory Datasheet
