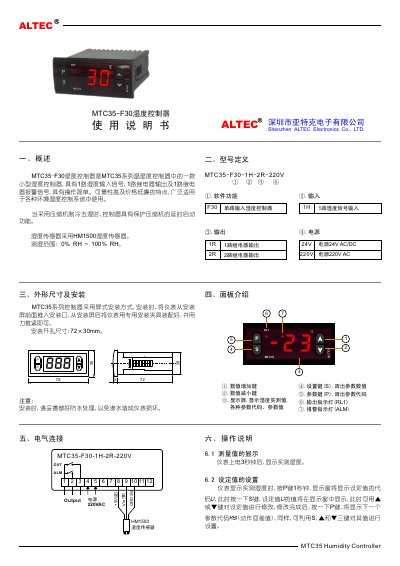

ALTEC MTC35-F30 Humidity Controller User Manual
The MTC35-F30 is a compact humidity controller with one humidity input, one relay output and one alarm output. It supports both 220 V AC and 24 V AC/DC power supplies and includes protection features such as delayed compressor start.
The manual covers physical dimensions, mounting instructions, electrical connections, panel description, software functions, parameter setting, alarm handling, fault codes and full technical data, allowing technicians to install, configure and maintain the device safely. This manual is written in Chinese.
Altec MTC35-F30 specifications
| Power supply | 220 V AC, 24 V AC/DC, ≤20 W |
|---|---|
| Working temperature | 0~50 °C |
| Dimensions | W78 mm × H35 mm × D78 mm |
All Altec MTC35-F30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which power supplies can be used with the MTC35‑F30?
It can be powered from 220 V AC or 24 V AC/DC, with a maximum consumption of 20 W.
How do you set the desired humidity setpoint?
Press the P key for 1 s to display the setpoint code, then press S and use the ▲/▼ keys to adjust the value.
What is the humidity measurement range of the MTC35-F30?
The controller can measure humidity from 0% RH up to 100% RH.
What power supplies can be used with the controller?
It can be powered from either a 24 V AC/DC source or a 220 V AC source.
