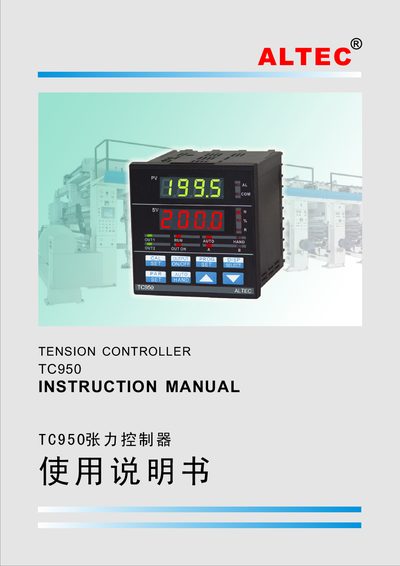

ALTEC TC950 Tension Controller User Manual
This manual describes the ALTEC TC950 digital tension controller, which can be used in manual, semi‑automatic or fully automatic modes for precise tension control in paper, film, textile and other roll‑based processes. It outlines the controller’s features, hardware modules, and the PID‑based control algorithm that ensures high accuracy and stability.
The document includes sections on installation, electrical connections, panel description, operation procedures, parameter configuration, calibration, and a full set of technical specifications. Appendices give wiring diagrams, typical application examples, and sensor installation details. This manual is written in Chinese.
Altec TC950 specifications
| Measurement accuracy | ±0.2%FS |
|---|---|
| Analog input range | 0~50mV, 4~20mA, 0~20mA or 0~10V |
| Output signal types | PWM, high‑speed pulse, single‑phase and three‑phase phase‑shift pulses |
| Communication interfaces | RS‑232 (3‑wire), RS‑485 (2‑wire) |
| Power supply | 100~260 V AC, 50/60 Hz |
| Dimensions | 96 mm (W) × 96 mm (H) × 100 mm (D) |
All Altec TC950 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I switch between automatic and manual control modes?
Press the AUTO/HAND key to toggle between automatic and manual control; the corresponding indicator light shows the active mode.
What output current range can OUT1 and OUT2 provide?
Each output can be set to either 0–20 mA or 4–20 mA, with a drive capability of 750 Ω.
