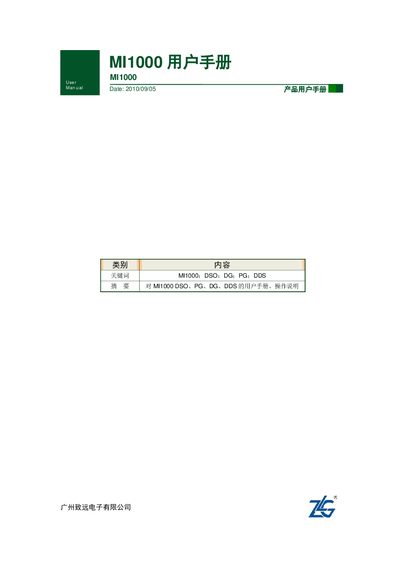

User manual, operation manual for MI1000 DSO, PG, DG, DDS
The MI1000 is a four‑in‑one test instrument that combines a digital storage oscilloscope (DSO), a graphic signal generator (PG), a direct‑digital synthesis signal generator (DDS) and a logic analyzer. The manual introduces its basic performance parameters, interface layout, and key functions.
The guide covers detailed operation steps such as channel setup, probe compensation, trigger configuration, measurement functions, window layout, and tag dialog usage, helping users quickly configure and use the instrument for signal analysis and generation. This manual is written in Chinese.
| Maximum sampling rate | 100 MSa/s per channel |
|---|---|
| Maximum memory depth | 1 MB per channel |
| Vertical bandwidth | DC to 60 MHz (-3 dB) |
| Vertical resolution | 8 bit |
| Input capacitance | ~20 pF |
| Voltage/div range | 5 mV/div to 1 V/div |
| Horizontal time range | 5 ns/div to 1 s/div |
Connect the power adapter (100 V‑240 V AC, 50‑60 Hz) and the USB cable, then turn on the power switch; the software will start and auto‑configure the instrument.
The instrument supports automatic, single, repeat, and normal trigger modes.
The MI1000 can sample up to 100 MSa/s per channel.
