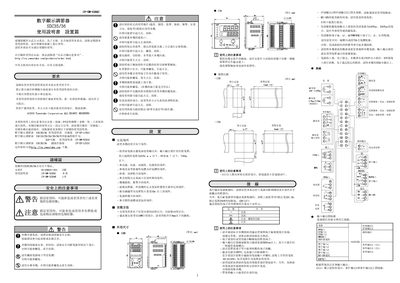

This manual provides installation, wiring, operation, parameter settings, specifications and safety instructions for the Yamatake SDC35/36 digital display…
The Yamatake SDC35/36 digital display controller is a compact, high‑precision controller for temperature and process control. This manual covers all aspects needed to install, configure and operate the device safely and reliably.
Key sections include installation guidelines, wiring diagrams, input and output configuration, communication settings, parameter programming, alarm handling, and detailed technical specifications. Safety precautions and recommended environmental conditions are also provided. This manual is written in Chinese.
| Panel size (C35) | 48 mm × 96 mm |
|---|---|
| Panel size (C36) | 96 mm × 96 mm |
| AC power supply | 100‑240 Vac, 50/60 Hz |
| Relay output rating (NO side) | 250 Vac / 30 Vdc, 3 A |
| Relay output rating (NC side) | 250 Vac / 30 Vdc, 1 A |
| Current output range | 0‑20 mA or 4‑20 mA |
| RS‑485 baud rates | 4800, 9600, 19200, 38400 bps |
Do not connect termination resistors at both ends of the RS‑485 communication line.
Mount the controller with an angle within ±10° from the horizontal position.
NO contacts are rated for 250 Vac/30 Vdc at 3 A, NC contacts for 250 Vac/30 Vdc at 1 A.
