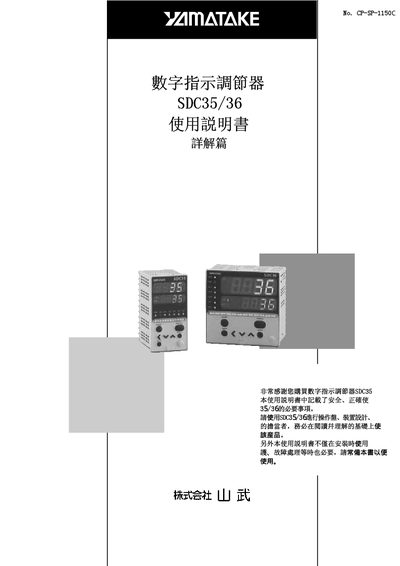

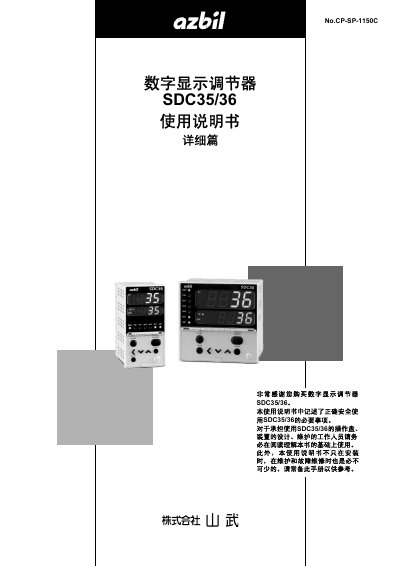

Yamatake SDC35/36 Digital Display Regulator User Manual
This document is the detailed user manual for the Yamatake SDC35/36 Digital Display Regulator. It covers essential safety requirements, installation procedures, wiring diagrams, and comprehensive explanations of all device functions and parameters. The guide is intended for operators, designers, and maintenance personnel responsible for the device's design, operation, and upkeep. This manual is written in Chinese.
Read onlineYamatake SDC35/36 specifications
| Panel size (C35) | 48 mm × 96 mm |
|---|---|
| Panel size (C36) | 96 mm × 96 mm |
| AC power supply | 100‑240 Vac, 50/60 Hz |
| Relay output rating (NO side) | 250 Vac / 30 Vdc, 3 A |
| Relay output rating (NC side) | 250 Vac / 30 Vdc, 1 A |
| Current output range | 0‑20 mA or 4‑20 mA |
| RS‑485 baud rates | 4800, 9600, 19200, 38400 bps |
Source: Yamatake SDC35/36 Digital Display Controller User Manual
All Yamatake SDC35/36 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum operating temperature for the regulator?
The device must be used within a temperature range of 0 to 50 degrees Celsius.
From: Yamatake SDC35/36 Digital Display Regulator User Manual
What type and rating of fuse is required for AC power wiring?
You must install a slow-blow type fuse rated at 500mA and 250V.
From: Yamatake SDC35/36 Digital Display Regulator User Manual
How can I avoid communication errors on the RS‑485 bus?
Do not connect termination resistors at both ends of the RS‑485 communication line.
From: Yamatake SDC35/36 Digital Display Controller User Manual
What installation angle is recommended for the controller?
Mount the controller with an angle within ±10° from the horizontal position.
From: Yamatake SDC35/36 Digital Display Controller User Manual
How should the RS‑485 communication be terminated?
When connecting RS‑485, termination resistors must not be placed at both ends of the communication line; otherwise communication will fail.
From: Yamatake SDC35/36 Digital Instruction Regulator User Manual
