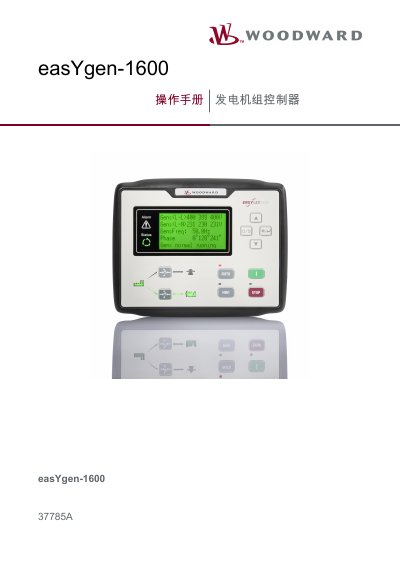

The Woodward easYgen-1600 manual explains installation, operation, safety and troubleshooting for the generator set controller.
The easYgen-1600 is a single‑generator‑set controller that provides measurement, monitoring and circuit‑breaker control functions. It is housed in an easy‑install plastic enclosure that protects a fully tested electronic‑electrical system. The HMI display and buttons let users view status, values and access applications, while password protection secures dedicated operation levels.
The manual covers safety symbols, required personnel qualifications, system overview, HMI screens, operation modes, start/stop procedures, fault handling and remote‑interface configuration. It also includes an index, glossary and contact information for service and warranty support. This manual is written in Chinese.
| Enclosure material | Plastic |
|---|---|
| Controller functions | Measurement, monitoring and circuit‑breaker control |
Only personnel with proper electrical installation training and relevant experience may operate the controller.
Remote control, monitoring, visualization and configuration are possible via the integrated interface.
