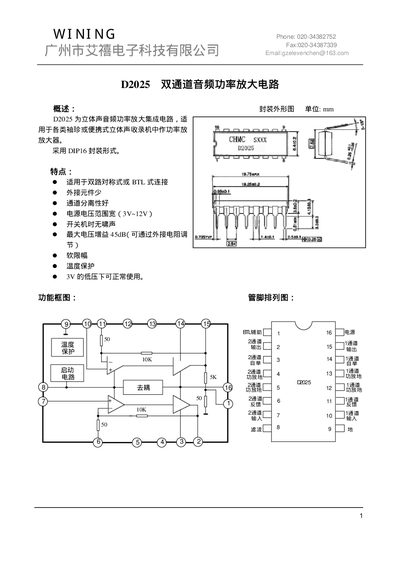

The WINING D2025 manual provides specifications, wiring diagrams, and usage instructions for the dual‑channel audio power amplifier module.
The D2025 is a dual‑channel audio power amplifier module designed for a wide range of audio applications. It operates from a supply voltage of 3 V to 12 V and offers high gain with low noise performance.
The manual includes detailed pin‑out diagrams, BTL and AUX circuit configurations, electrical specifications such as gain, THD, output power, and recommended component values for various supply voltages. This manual is written in Chinese.
| Output Power (Vcc=9 V) | 250 mW |
|---|
At 9 V the D2025 can deliver approximately 250 mW of output power.
