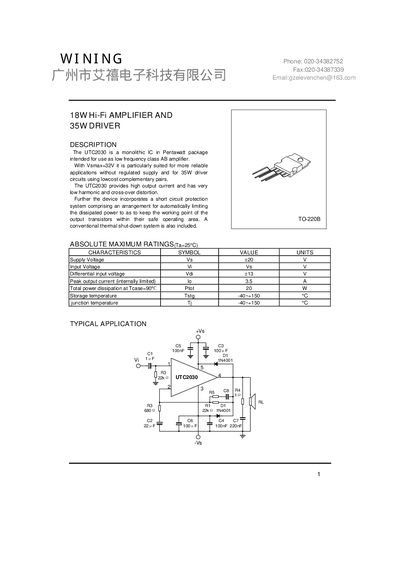

The UTC2030 is a power amplifier produced by Guangzhou AiXi Electronic Technology Co., Ltd. The product adopts Pentawatt package, the rated output voltage is ±20V, the input voltage is ±16V, the output current is 3.5A, and the total power consumption is 20W.
The UTC2030 is a monolithic IC in a Pentawatt package designed for low‑frequency class‑AB audio amplification. It operates from a supply voltage up to ±20 V and delivers up to 18 W into a 4 Ω load, with built‑in short‑circuit protection and thermal shut‑down.
The document provides detailed electrical characteristics, pin connections, typical application circuits, performance graphs, and design guidelines such as component selection and protection features for reliable, non‑regulated power supplies.
