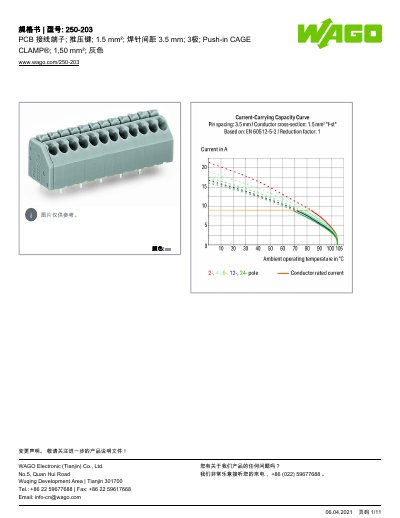

This datasheet details the WAGO 250-203 PCB terminal block, covering electrical ratings, mechanical dimensions, material specifications, and compatible…
The WAGO 250-203 is a compact PCB terminal block featuring a Push-in CAGE CLAMP® connection technology. It is designed for single-strand and fine multi-strand wires with or without ferrules, offering a 45° wire entry angle for easier routing. The unit is available in grey and supports mixed-color assembly. This manual is written in Chinese.
| Rated Voltage (III/3) | 250V |
|---|---|
| Rated Current | 8A |
| Wire Cross-Section | 0.2 … 1.5 mm² |
| Pin Spacing | 3.5 mm |
| Width | 12 mm |
| Height | 16.7 mm |
| Insulation Material | Nylon 66 (PA 66) |
| Operating Temperature Range | -60 … +105 °C |
The terminal block supports single-strand wires from 0.2 to 1.5 mm² and fine multi-strand wires from 0.2 to 1.5 mm².
The wire entry hole is angled at 45° to the horizontal plane to facilitate wiring.
Recommended tools include models 210-657 and 210-720, which feature a blade size of 3.5 x 0.5 mm.
