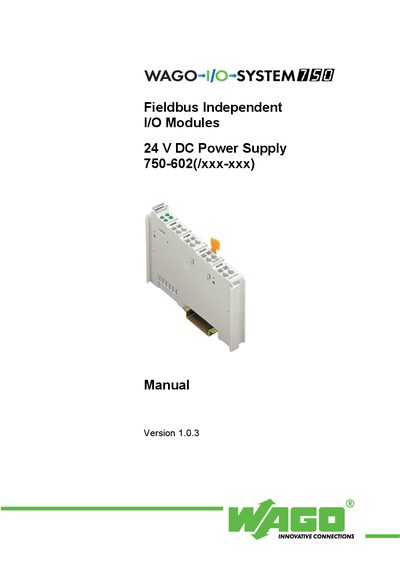

This manual describes the WAGO 750-602 System Module, a passive 24 V DC power supply for the WAGO-I/O-SYSTEM 750 fieldbus system.
The document serves as a user guide for the WAGO 750-602(/xxx-xxx) 24 V DC Power Supply module. It covers legal principles, safety notes regarding electrostatic discharge and material handling, and the scope of use within the modular I/O system.
The manual details the technical specifications of the module, including its electrical isolation, maximum current rating of 10 A, and physical dimensions suitable for a 35 mm DIN rail. It also explains the power supply concept required for certified operation in shipbuilding or offshore applications.
| Voltage via power jumper contacts | DC 24 V (-25 % ... + 30 %) |
|---|---|
| Current via power jumper contacts | max. 10 A |
| Dimensions (W x H x L) | 12 x 64* x 100 * mm |
| Weight | ca. 45 g |
The maximum current of the supply module is 10 A.
The maximum current of the supply module is 10 A.
The dimensions are 12 x 64* x 100 * mm.
The module supports a DC 24 V supply with a tolerance of -25 % to +30 %.
