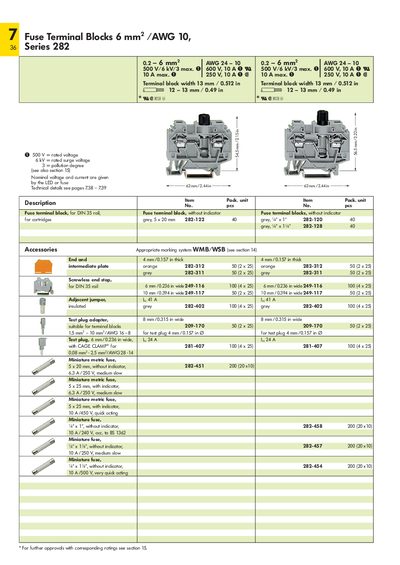

This is a PDF file about 6 mm2 /AWG 10, Series 282.
The Series 282 fuse terminal blocks are designed for DIN 35 rail mounting and are available in various widths and configurations. They are supplied without indicators and can be used with miniature metric fuses ranging from 5 × 20 mm to 5 × 25 mm.
Key technical data include a rated voltage of 500 V, a surge voltage of 6 kV, a pollution degree of 3, and a maximum continuous current of 10 A. The terminal block width ranges from 6 mm to 13 mm, and a range of accessories such as screwless end stops, intermediate plates, and test plugs are listed with their part numbers.
| Rated voltage | 500 V |
|---|---|
| Surge voltage | 6 kV |
| Pollution degree | 3 |
| Maximum continuous current | 10 A |
| Nominal voltage (for some parts) | 250 V |
| Terminal block width | 13 mm (0.512 in) |
| Terminal block width (small version) | 6 mm (0.236 in) |
The rated voltage is 500 V.
They are rated for a maximum continuous current of 10 A.
The standard terminal block width is 13 mm (0.512 in).
