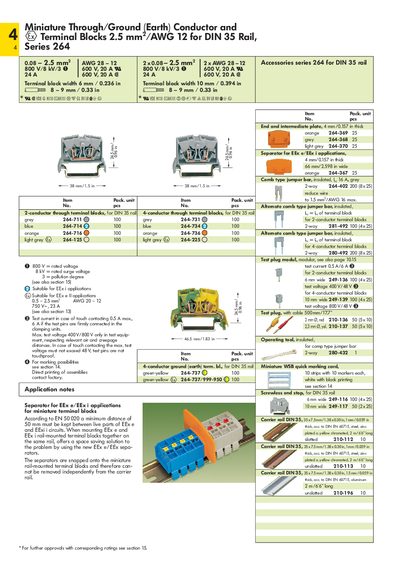

The WAGO Series 264 miniature through/ground (earth) conductor terminal blocks provide 2.5 mm² (AWG 12) conductors for DIN 35 rail mounting. They are rated for up to 800 V/8 kV and 20 A, with terminal block widths of 6 mm or 10 mm depending on the configuration.
A range of accessories is available, including comb‑type jumper bars, separators for EEx e/EEx i applications, end and intermediate plates, and quick‑marking cards. The carrier rail dimensions are 35 × 75 mm with a 1 mm thickness, offered in steel or aluminum variants.
| Terminal block width | 6 mm (0.236 in) |
|---|---|
| Terminal block width | 10 mm (0.394 in) |
| Rated voltage | 800 V / 8 kV |
| Current rating | 20 A |
| Conductor size | 2.5 mm² (AWG 12) |
