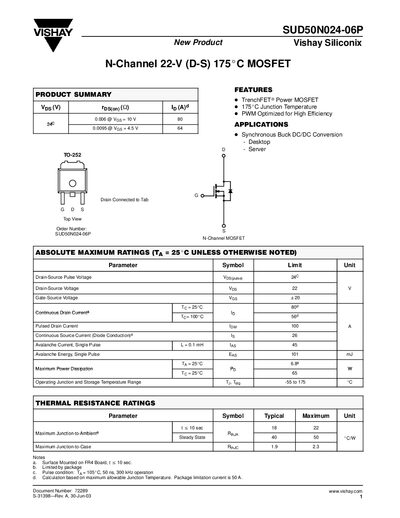

The Vishay SUD50N024-06P datasheet provides specifications, ratings, and characteristic curves for this N‑Channel 22‑V power MOSFET.
The SUD50N024-06P is a trench‑FET N‑Channel power MOSFET designed for high‑efficiency synchronous buck DC/DC conversion in desktop and server applications. It features a low on‑state resistance and fast switching characteristics.
The document lists absolute maximum ratings, thermal resistance values, detailed electrical specifications, and typical performance curves, including drain‑source voltage limits, continuous drain current, on‑resistance, capacitances, and safe operating area.
| Drain‑Source Voltage (VDS) max | 22 V |
|---|---|
| Input Capacitance (Ciss) | 2550 pF |
The maximum drain‑source voltage is 22 V.
