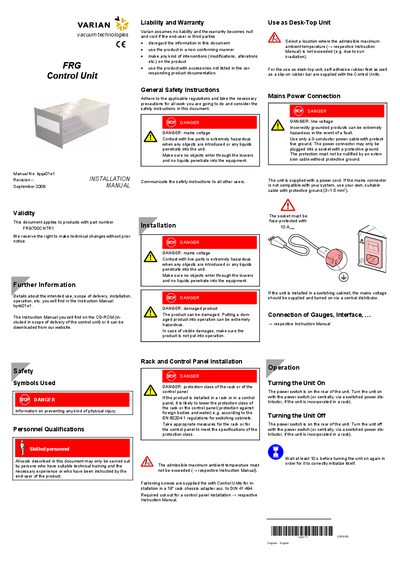

Installation manual for Varian FRG700CNTR1 Control Unit with safety, wiring and rack‑mounting instructions.
This installation guide provides safety instructions, required qualifications, and step‑by‑step procedures for installing the Varian FRG700CNTR1 Control Unit. It covers rack or control‑panel mounting, desk‑top use, and required power connections, emphasizing compliance with EN 60204‑1 and other relevant standards.
The manual also details operation of the unit, including power‑switch location, start‑up sequence, and shutdown procedure, and includes a declaration of conformity and warranty information.
| Part number | FRG700CNTR1 |
|---|---|
| Maximum current | 10 A |
| Power cable | 3 × 1.5 mm², 3‑conductor with protective ground |
Only skilled personnel with suitable technical training or instruction from the end‑user may carry out the work.
The power switch is located on the rear of the unit; turn it on to start and off to stop, waiting at least 10 seconds before re‑powering.
