The CT-100 is a high-performance pressure gauge with rapid response time and selectable pressure range. It has a response time of 0.2 seconds, allowing fast-acting valves to protect turbo pumps from sudden gas inflow. It provides accurate and repeatable range readings, and operates over a wide pressure spectrum. The thick sensing element makes it durable and reliable, maintaining gauge accuracy over time. It also features two setpoints per gauge, status LEDs for quick visual indication of vacuum status, and is cost-effective compared to traditional Pirani gauges.

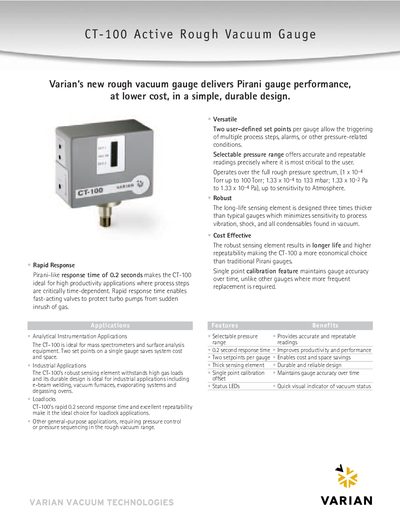

The Varian CT-100 Active Rough Vacuum Gauge is designed to deliver Pirani gauge performance at a lower cost with a simple, durable design. It features a rapid response time of 0.2 seconds, making it ideal for high productivity applications where process steps are time-dependent, such as protecting turbo pumps from sudden gas inrush. The gauge includes two user-defined set points on a single unit to save system cost and space.
| Response time | 0.2 second |
|---|---|
| Pressure range | 1 x 10-4 to 100 Torr |
| Setpoints | Two setpoints |
The CT-100 has a Pirani-like response time of 0.2 seconds.
The gauge features two user-defined set points per gauge.
Yes, its rapid 0.2 second response time and excellent repeatability make it the ideal choice for loadlock applications.
