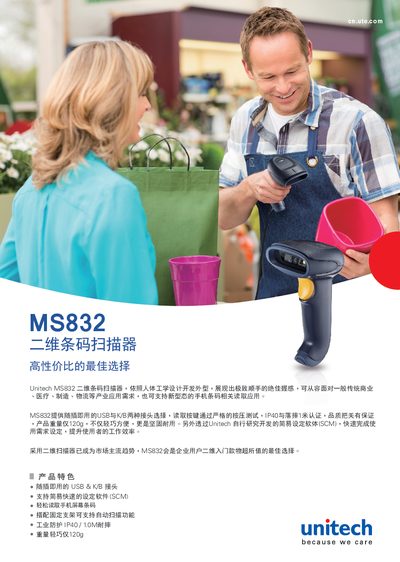

The Unitech MS832 is a lightweight 2D barcode scanner with USB/K‑B connectors, IP40 protection, 1 m drop resistance and support for many 1D/2D codes.
The MS832 barcode scanner is designed for plug‑and‑play use with both USB and K/B interfaces. It features an ergonomic shape, a 617 nm red LED, a 640 × 480‑pixel image sensor and a compact size of 170 × 66 × 85 mm, weighing only 120 g. The device meets IP40 protection standards and can survive drops from up to 1 m, making it suitable for commercial, medical, manufacturing and logistics environments.
It supports a wide range of 1D and 2D symbologies, including Code128, QR Code, Data Matrix, PDF417 and many others, and can be quickly configured with Unitech’s SCM software. The scanner operates from 0 °C to 40 °C, stores from –40 °C to 60 °C, and consumes less than 400 mA during use and under 90 mA in standby. Certifications include CE, FCC, BSMI and VCCI. This manual is written in Chinese.
| LED wavelength | 617 nm red |
|---|---|
| Image sensor resolution | 640 × 480 pixels |
| Scan angle | ±70° skew, ±60° pitch |
| Drop resistance | 1 m |
| Weight | 120 g |
| Dimensions (L×W×H) | 170 × 66 × 85 mm |
| Interface | USB, K/B |
| Certifications | CE, FCC, BSMI, VCCI |
It offers both USB and K/B connectors for flexible integration.
The scanner weighs only 120 g, making it very lightweight.
The device is certified to survive a drop from a height of 1 meter.
