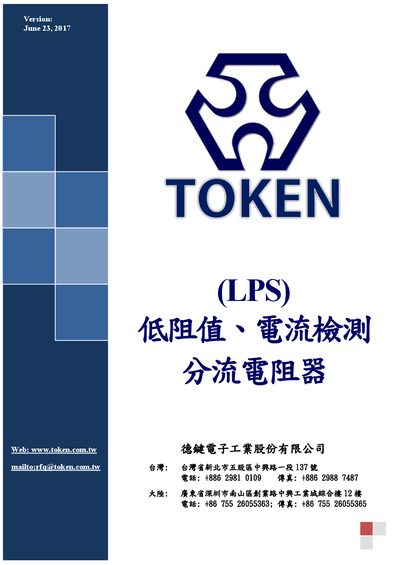

This document introduces the Token LPS series of low-value current sense shunt resistors, detailing their features, applications, dimensions, and…
The Token LPS series consists of low-inductance shunt resistors designed for current detection and sensing applications. These components feature a U-shaped design suitable for direct PCB mounting and are constructed from high-stability alloy metal. They are available in two configurations: a 4-pin Type-A with Kelvin connections for high-current applications, and a 2-pin Type-B with traditional opposite pin placement. The series supports resistance values ranging from 0.002Ω to 0.05Ω and power ratings up to 5W, with standard tolerances of ±2%, ±5%, and ±10%. This manual is written in Chinese.
| Resistance Range | 0.002Ω ~ 0.05Ω |
|---|---|
| Power Rating | 1W ~ 5W |
| Operating Temperature | -50℃ ~ 300℃ |
| Standard Tolerances | ±2%, ±5%, ±10% |
| Terminal Current Capacity (Type-A) | 100 A |
| Terminal Current Capacity (Type-B) | 50 A |
The standard tolerance options are ±2%, ±5%, and ±10%.
The resistance range is from 0.002Ω to 0.05Ω.
Yes, the series complies with RoHS lead-free standards.
The series is divided into Type-A with 4 pins (Kelvin configuration) and Type-B with 2 pins.
