Technical specifications for Token Electronics' XT MJ/MB ceramic trap filter series, including frequency, attenuation and bandwidth data.
The XT MJ/MB ceramic trap filter series from Token Electronics provides band‑reject performance for video and sound IF attenuation. The two‑terminal devices are compatible with Murata TPS MJ series parts and are used to suppress chrominance carriers in video or sound signals in B/W receivers.

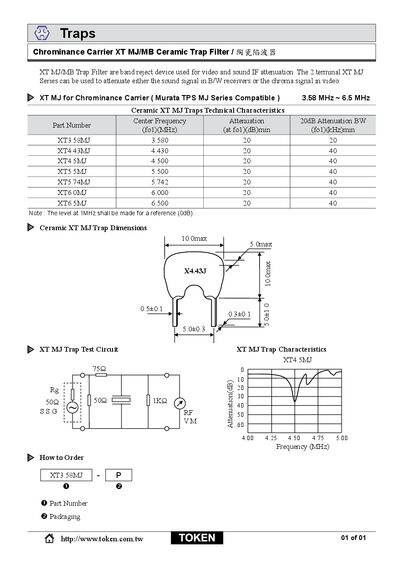

The datasheet lists part numbers, center frequencies, minimum attenuation and bandwidth for each model, along with a test circuit diagram and ordering information.
| XT3.58MJ Center Frequency | 3.580 MHz |
|---|---|
| XT3.58MJ Minimum Attenuation | 20 dB |
| XT3.58MJ Bandwidth | 20 kHz |
| XT4.43MJ Center Frequency | 4.430 MHz |
| XT4.43MJ Minimum Attenuation | 20 dB |
| XT4.43MJ Bandwidth | 40 kHz |
| XT4.5MJ Center Frequency | 4.500 MHz |
| XT4.5MJ Minimum Attenuation | 20 dB |
| XT4.5MJ Bandwidth | 40 kHz |
The XT3.58MJ filter has a center frequency of 3.580 MHz.
The XT4.5MJ filter provides a minimum attenuation of 20 dB at its center frequency.
The XT4.43MJ filter has a bandwidth of 40 kHz.
Ordering information is provided in the 'How to Order' section of the datasheet.
