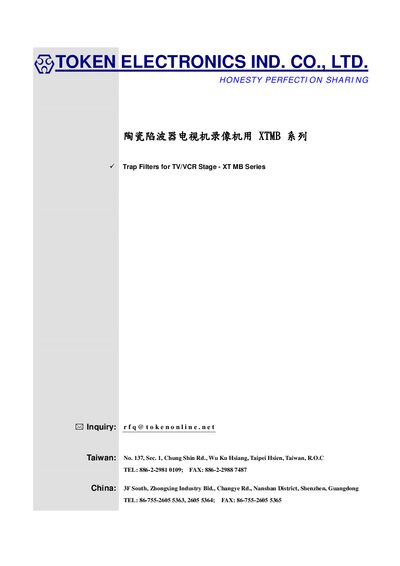

The Token Electronics XTMB Series ceramic trap filters are band‑reject filters for TV/VCR video and audio IF attenuation, covering 4.5‑6.5 MHz with up to…
The XTMB series ceramic trap filters from Token Electronics are designed for TV and VCR stage applications, providing video and sound IF attenuation. Each filter contains two trap elements on a single substrate, allowing additional attenuation in the signal path.
Technical characteristics include center frequencies from 4.5 MHz to 6.5 MHz, minimum attenuation of 30 dB at the center frequency, and attenuation bandwidths ranging from 40 kHz to 90 kHz. The datasheet also provides a test circuit diagram and contact information for ordering. This manual is written in Chinese.
| Center Frequency range | 4.5 MHz – 6.5 MHz |
|---|---|
| Minimum attenuation at center frequency | 30 dB |
| Number of trap elements per substrate | 2 |
The XTMB series filters cover a center frequency range from 4.5 MHz to 6.5 MHz.
Each XTMB filter substrate contains two trap elements.
The minimum attenuation at the center frequency is 30 dB.
