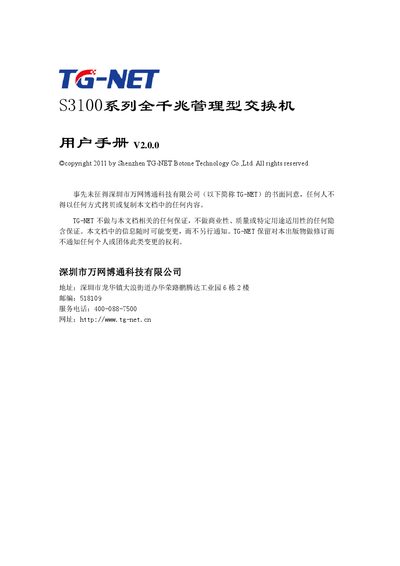

User manual for TG‑NET S3100 series gigabit managed switches covering installation, web and CLI configuration, and troubleshooting.
This manual provides step‑by‑step hardware installation guidance, including power connection, rack mounting, and safety precautions for the TG‑NET S3100 series gigabit managed switches. It also details the front‑panel indicators, port types, and required tools.
The document includes comprehensive configuration instructions via the web interface and CLI, covering system login, VLAN, LACP, RSTP, IGMP, QoS, and other advanced features, plus a troubleshooting appendix for common fault symptoms. This manual is written in Chinese.
| Dimensions (rack‑mount) | 440 mm × 285 mm × 44.5 mm |
|---|---|
| Power input | 160‑265 V, 50‑60 Hz |
| Maximum power consumption | ≈ 30 W |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Operating humidity | 5 % ~ 90 % non‑condensing |
| Ethernet ports (S3100‑24G example) | 24 × 10/100/1000 Mbps adaptive ports |
| SFP ports (S3100‑24G‑2F example) | 2 × Gigabit SFP uplink ports |
The S3100‑24G model provides 24 adaptive 10/100/1000 Mbps Ethernet ports.
Select the “恢复出厂设置” option in the menu (page 5) to restore factory settings.
A three‑wire (single‑phase) socket with a neutral point is recommended for connecting the power cable.
