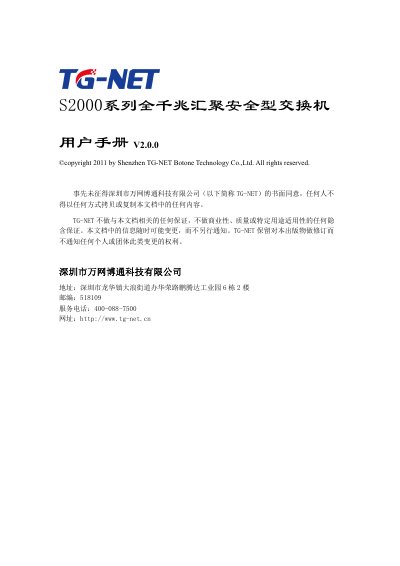

This document is the user manual for the S2000 series full gigabit converged secure switch, which introduces the uses, hardware installation instructions, and WEB configuration instructions of the switch.
This manual covers the hardware installation of the S2000 series gigabit switches, including front‑panel port layout, rear‑panel power connections, and required tools. It also details safety precautions, mounting options, and power‑line setup.
The second part explains web‑based configuration, showing the default IP (192.168.1.1) and password (admin), how to log in, and how to manage system, port, and advanced settings. The final sections describe system maintenance, firmware upgrades, configuration backup, and factory‑reset procedures. This manual is written in Chinese.
| SFP ports (S2000-24G-2F) | 2 × 1000Mbps SFP |
|---|---|
| Power supply voltage | 160‑265 V, 50‑60 Hz |
| Maximum power consumption | ≈ 30 W |
| Dimensions (rackmount) | 440 mm × 285 mm × 44.5 mm |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -40 °C – 70 °C |
| Humidity (non‑condensing) | 5 % – 90 % |
It operates on a universal AC supply of 160 V to 265 V at 50‑60 Hz.
